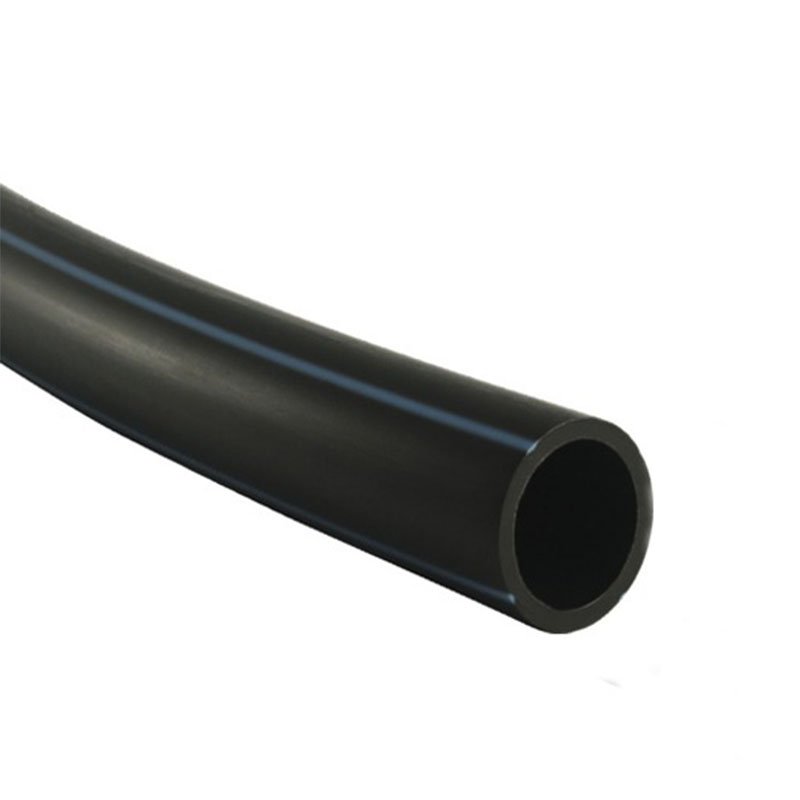

Industrial EPDM Rubber Tubing
Product Specification
Material: EPDM
Name: EPDM Tube
Density: 1.35g/cm3
Hardness: 65shore A
Color: Black
Temperature:-40°C~+120°C
Package: in a roll or according you required
MOQ: 1000M
EPDM rubber tube is commonly choosed by customer. EPDM rubber exhibits extremely high chemical stability and is one of the rubbers with the best weather resistance. The hardness of densely extruded rubber tube is typically 60~85A.
Performance
Performance Category | Specific Parameters |
Temperature Range | Long-term: -40℃~120℃; Short-term peak: 150℃ |
Media Resistance | Resistant to cold water, hot water, and saturated steam; resistant to weak acids (pH≥4) and weak alkalis (pH≤10); resistant to ethylene glycol and antifreeze; resistant to ozone, ultraviolet radiation, and aging. |
Physical Properties | Tensile Strength: 8~13MPa; Elongation at Break: 300%~500%; Resilience: ≥60% |
Advantages and Disadvantages of EPDM Rubber Tube
Advantages: Excellent weather resistance, outdoor use for 15~20 years without aging; good insulation performance; excellent elasticity, low compression set; moderate cost, high cost-effectiveness.
Disadvantages: Not resistant to mineral oils and aromatic solvents (such as gasoline, diesel, and toluene); not resistant to strong acids and alkalis (concentration > 10%).
Applications
Building HVAC: Air conditioning condensate drain pipes, underfloor heating manifold connection pipes, radiator bypass pipes, solar water heater inlet and outlet pipes.
Automotive Industry: Engine coolant circulation pipes, heating system hoses, vacuum brake booster pipes, body drain hole sleeves.
Industrial Equipment: Low-pressure steam transmission pipes (such as small boilers and ovens), equipment cooling water pipelines, acid and alkali dilution solution transmission pipes (concentration < 10%).
Electrical Protection: Wire and cable insulation sleeves, transformer cooling water pipe sleeves.
