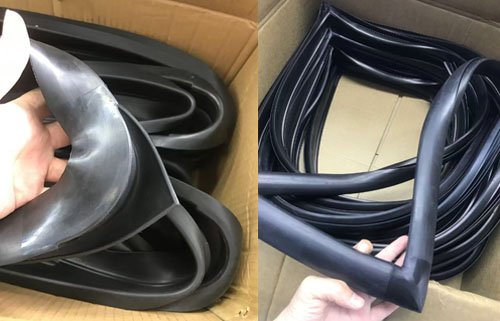

Refrigerated Container Door Seal Strip
Product Specification
Name: Container door seal
Material: EPDM
Harndess: 65 to 85shore A
Density: 1.35g/cm3
Tensile Strength: ≥7Mpa
Color: Black
MOQ: 500M
Product Features
● Now most of container door seal extruded by EPDM material, due to it’s excellent physical and mechanical performance, it’s service life can be last at least 10years.
● EPDM material not only with excellent weather and ozone resistance, but also with good resistance to chemicals, hot water and steam.
● J type, H type and C type can be choose.
● The big container door seal also can be cut to specific length and vulcanized corner to create a frame to make sure very good sealing performance, prove water, dust and mosquitoes.
● Send drawing or samples to get a quote.
Installation & Maintenance Guide
Signs for Seal Replacement
Visible cracks or hardening
Compression recovery less than 80%
Light visible through closed door
Abnormal increase in internal condensation
Professional Installation Steps：
Thoroughly clean door frame contact surface
Begin installation from top center
Ensure seamless corner joints
Check compression status after 48-hour break-in period
Cold Chain Integrity Verification
Applications
General Container door seal
refrigerated container door seal
